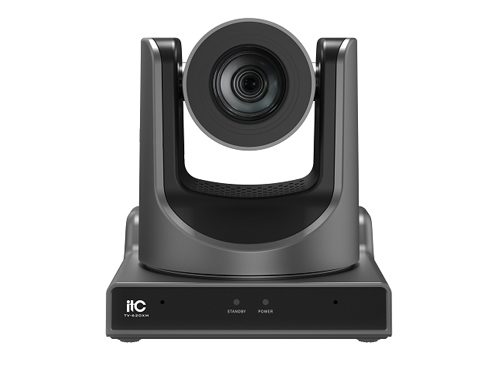

TV-620XM Video Conference Camera

The Details Related Solution Related Cases Related Video Download


Description:


This is PTZ camera, which adopts a new generation of ISP image processing algorithm to provide a more perfect white balance and auto exposure function, so that the image output performance has been significantly improved, and the imaging effect is also better. It supports H.265/H.264 encoding, which makes the picture smoother and clearer even under low bandwidth. Characterized by complete functions, excellent performance, and diversified interfaces, it is widely used in educational recording, distance teaching, video conference, live streaming and broadcasting, etc.


Feature:


* Full HD image: Using 1/2.8-inch high-quality image sensor, the maximum resolution reaches 1920x1080, and the output frame rate reaches 60 frames per second.

* Using 60.7° high-quality optical lens, it supports 20× optical zoom, and 16× digital zoom.

* Using AI technology and pedestrian re-identification technology, it can accurately detect the location of each person based on information such as the dress, body shape, hairstyle, and facial features of the participants, and realize automatic identification and tracking of speakers, automatic selection, and

intelligent privacy blurring of the meeting.

* Support the extension of 1080P60 NDI®|HB technology to achieve ultra-high-resolution image quality and closer to lossless visual effects through network transmission.

* All video output interfaces have achieved low latency indicators. Support 4-channel video simultaneous output of HDMI, 3G-SDI, USB 3.0, and network, and support 1080P60.

* The advanced focusing algorithm is used to make the lens focus quickly, accurately and stably.

* Use exclusive audio processing algorithm to eliminate reverberation; adopt advanced 2D and 3D noise reduction technology to further reduce noise; support EQ adjustment to optimize sound effects;support built-in dual mic pickup, and also support external microphones, wireless speakers, etc. With a 3.5mm audio input interface to meet the sound pickup needs of most scenes.

* Equipped with 1 channel of 3.5mm audio output interface.

* Support HDMI, USB 3.0 and network audio output, AAC audio encoding, realizing better sound quality, less bandwidth occupation.

* The camera can be controlled via RS232 and RS485 serial ports.

* PTZ FUNCTIONALITY.



Specification:


Model

TV-620XM

Video signal system

1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50,

1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50

Sensor type

1/2.8 inches, CMOS, effective pixels: 2.07 million, progressive

Scanning method

Progressive scanning

Lens

20x, f4.42mm~88.5mm, F1.8~F2.8 [35mm equivalent focal length:

34mm-674mm]

Digital zoom

16x

Minimum illumination

0.5Lux @ (F1.8, AGC ON)

Electronic shutter

1/30s~1/10000s

White balance

Auto, manual, one-touch, specified color temperature, indoor, outdoor

Digital noise reduction

2D, 3D digital noise reduction

BLC

Support

SNR

≥55dB

Horizontal field of view

60.7°~3.36°

Vertical field of view

34.1°~1.89°

Horizontal rotation range

±170°

Vertical rotation range

-30°~+90°

Horizontal rotation speed

1.7°~100°/s

Vertical rotation speed

1.7°~69.9°/s

Horizontal and vertical flipping

Support

Image freeze

Support

Presets quantity

255

Presets accuracy

0.1°

Audio parameters

Digital audio pickup

Built-in dual microphone array, 100Hz to 16KHz frequency response

Analog audio input

Support 3.5mm Line-In

Digital audio output

Support HDMI, USB, LAN and other audio output

Analog audio output

Support 3.5mm Line-Out

USB parameters

Color space/Compression

YUY2/MJPEG/H.264

Video format

Support various video formats with different frame rates and resolutions, up to 1080P60 YUY2 output

USB video communication protocol UVC 1.1 or UVC1.5 USB audio 32K sampling rate, support UAC2.0

UVC PTZ control, support IPC features (IP Camera)

Video coding standard

H.264/H.265

Video stream

First code stream, Second code stream

First stream resolution

1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360

Second stream resolution

1280x720, 1024x576, 720x576, 720x480, 720x408, 640x360,

480x270, 320x240, 320x180

Video bit rate

32Kbps~102400Kbps

Bit rate control

Variable bit rate, fixed bit rate

Frame rate

1fps~60fps

Audio compression standard

AAC

Audio bit rate

96Kbps, 128Kbps, 256Kbps

Network protocol

NDIHBNDIHX, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP,

Multicast, SRT, etc.

Input and output interface

USB interface, 1 USB 3.0: Type A socket

HD output

1CH, HDMI: Version 1.3

1CH, 3G-SDI: BNC type, 800mVp-p, 75Ω, in line with SMPTE 424M standard

Network interface

1CH, RJ45: 10M/100M/1000M adaptive Ethernet port, support PoE

Audio interface

1CH, Line In, 3.5mm audio jack; 1CH, Line Out, 3.5mm audio jack

Communication interface

1CH, RS232 In: 8-pin mini DIN, maximum distance: 30 meters, VISCA/Pelco-D/Pelco-P protocol

1CH, RS232 Out: 8-pin small DIN, maximum distance: 30 meters, for VISCA protocol networking

1CH, RS485: 2-pin Phoenix port, maximum distance: 1200 meters,

VISCA/Pelco-D/Pelco-P protocol

Power interface

JEITA type (DC IN 12V)

Input voltage

DC 12V, PoE (802.3af)

Input current

1000mA

Working temperature

0°C~40°C

Storage temperature

-40°C~60°C

Power consumption

12W

Dimension (L×W×H)

146×169×168mm

Net weight

About 1.5kg

MTBF

30000H
