Description:

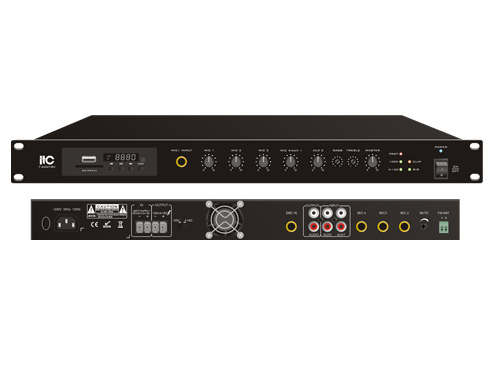

Digital Mixer Amplifier with mp3/TUNER/Bluetooth for small and medium sized background music occasion such as small supermarkets, shopping malls, and cafes.
Features：
* Standard rack mounted design (1U), exquisite SMT technology.
* With MP3 function module, adopt LCD display, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card, support mobile phone Bluetooth function, and can display song names.
* Support mp3/TUNER/Bluetooth remote control function.
* 1 channel EMC input, 2 channels AUX input, 4 channels MIC input.
* Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2
* Each channel has independent volume control function; master input has volume control and treble/bass control
* The machine is equipped with level indication, overload and protection indicator.
* The device has good self-protection such as short circuit, overload and overheating.
* Two output modes: constant voltage output 100V, 4-16Ω.
* Energy-efficient switching power supply combines with energy-saving and ultra-stable design of Class D amplifiers
* Wide voltage supply: 180V-240V can work normally.
* Support backup power supply 24V no delay switching.
Specifications：
|
Model |
T-60DTBV |
T-120DTBV |
T-240DTBV |
T-350DTBV |
T-500DTBV |
|
Output |
4-16Ω, 100V |
||||
|
RMS Power |
60W |
120W |
240W |
350W |
500W |
|
Input Sensitivity & Impedance |
MIC1, 2, 3, 4 input: 5mV/600Ω, unbalanced 6.3 connector; |
||||
|
AUX1, 2 input: 350mV/10KΩ, unbalanced RCA connector; |
|||||
|
EMC input: 775mV/10KΩ, unbalanced 6.3 connector |
|||||
|
Output Sensitivity & Source Impedance |
MIX OUT: 1000mV/470Ω, unbalanced RCA connector |
||||
|
Tone |
Bass: ±10dB at 100Hz; |
||||
|
Treble: ±10dB at 10KHz |
|||||
|
Frequency Response |
50Hz~16KHz(+1dB,-3dB) |
||||
|
SNR |
MIC1, 2, 3: 66dB; AUX1, 2: 80dB |
||||
|
THD |
Less than 0.5%( at 1KHz, 1/3 rated power) |
||||
|
Mute Control |
MIC 1 priority over MIC2-4, AUX1-2 audio input; |
||||
|
EMC has highest priority |
|||||
|
Channel Crosstalk Attenuation |
≥50dB |
||||
|
Heat Dissipation |
Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed |
||||
|
Protection |
Over-heat, overload, short circuit |
||||
|
Power Supply |
AC ~220-240V /50Hz |
||||
|
Power Consumption |
120W |
180W |
300W |
500W |
650W |
|
Dimension |
484x300x44mm |
||||
|
Weight |
3.5 Kg |
3.7Kg |
3.8Kg |
4.0Kg |
4.1Kg |
