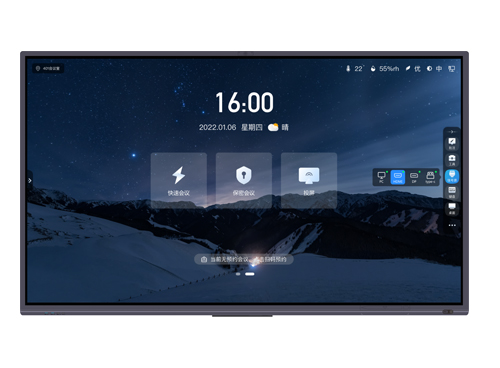

TV-65810 Intelligent Interactive Display

The Details Related Solution Related Cases Related Video Download

Production Introduction


The interactive flat panel integrates application function modules such as presentation, writing, interaction, sharing and etc., to create a simple paperless meeting/teaching scene, and to easily realize efficient, convenient and harmonious meeting/teaching methods.


Features


*Adopt Android system embedded system, support wired TV playback function; Built-in OPS computer display function;USB multimedia file playback function.
*Support 10-point touch on PC and android; Support touch operation picture zoom in, zoom out, rotation and so on; Touch function is available after signal source switched.
*Support to operate the menu of signal source, volume and others by touching under the display state of signal sources.
*Support sleep timing and shutdown memory function; support remote control shortcut keys, realize F1~F12 and other button functions.


*Support light sense recognition, realize automatically adjust the brightness of the screen in different environments.

*Support touch menu, realize back button, menu operation, task preview, channel switching, volume adjustment, shortcut whiteboard operation and etc.
*Support to click any signal source on the main page of the system, and support the one-button child lock function of the remote control.
*Support wireless wifi and wired LAN, support front-button one-button switch computer, TV, and one button to switch home page function.


*Support embedded HD camera to take photos and videos recording (optional support is required).

*The front panel built-in VGA, Audio, HDMI, USB2.0, USB3.0 and touch interface, convenient for users to use.
*Support wireless screen transmission, transmit computer/laptop signals to interactive TV for display, support simultaneous reception of four signals on the same interactive TV.
*Support recording function, electronic whiteboard and handwritten annotation function to meet various application requirements of training teaching.


*Support timing function, with timer widget, can control the time at any time.

*Built-in rich interface template, can directly preview and modify the template style, provide a signature welcome wall.



Specification


Model
TV-65810
Processor
CORTEX A53 4-core 1.4GHz
System
Android 5.0 Embedded System
Storage
DDR3 2G
Storage space
32GB
External Storage
SD card max 128GB;USB3.0 max 1TB
Display Size
65 inch(16:9)
Screen type
LED display
Screen display size
1430.7mm x 805.1mm
Physical resolution
3840(H)×2160(V)(UHD)
Display color
10bit, 1.07B
Refresh Rate
60Hz
Brightness
350-500cd/m²
Contrast
5000:1
View Angle (degree)
178°
Display Screen protection
4mm All toughened high explosive glass
Backlightlamp life
80000 hours
NTSC
PAL/SECAM/NTSC(Option)
Sound format
BG /DK /I/L
Channel storage
200 channels
Decode

3D digital comb filter, 3D image motion noise reduction,

3D motion adaptive comb filter and etc

Speaker specification
15W /8Ohms× 2 Subwoofer speaker
Audio features
Balance, automatic volume control, surround sound, equalizer
Input port

AV:1 group

RF:1 group

VGA:2groups(front 1 group)

Audio:2groups(front 1 group)

MIC:1 group

Component:1 group(3-in-1 port)

LAN:1 group

TF card:1 group

TOUCH PORT:2 groups(front 1 group)

HDMI:3 groups(front 1 group)

USB2.0:1 group(front 1 group)

USB3.0:3 groups(front 1 group only supports OPS computer to use

Output port

Coaxial:1 group

AV:1 group(3 in 1 port)

Earphone:1 group

VGA:1 group

LAN:1 group

Communication port
RS232:1 group
Touch embedding type
Built-in integrated type, non-external type
Touch sensing technology
Infrared sensor recognition touch technology ( 10-poin )
Writing type

Fingers, touch pens or other non-transparent objects

with a diameter of not less than 6mm (multi-point 8mm)

Cursor speed
120 dot/s
Positioning Accuracy
More than 90% of the touch area is ±2mm
Communication Interface
B type USB female head
Touch resolution
32767*32767
Touch number
No limited
Computer response
Automatic system identification≤15ms
Driver
No driver
