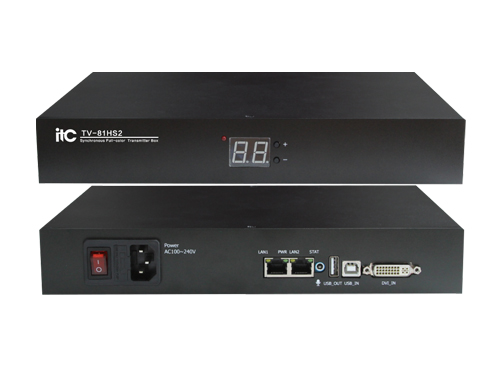

TV-81HS2 Synchronous Full-color Transmitter Box

The Details Related Solution Related Cases Related Video Download

Product description
* This transmitter box adopts 2* USB2.0 interfaces as the communication interface, realizing high-speed communication between PC and transmitter card ,as well as convenient and reliable multi cards cascading ; can be perfectly applied to a small LED video wall.

Function feature
* Support DVI video signal input, support standard 60Hz, and self adaptive frame rate.
* Input resolution: up to 1920 * 1200 points, support arbitrary setting for resolution.
* Support audio input, synchronous transmission through the network cable.
* Single card maximum load area: 1.31 million pixels, the width up to 2560, or height up to 2560 pixels.

* Supports two Gigabit LAN outputs, supports two up and down, left and right any splicing.

* Dual USB interface for data communication, easy for splicing cascading, strict synchronization.
* Support low brightness and high gray level.Specification

Product Model TV-81HS2
Operating voltage AC 100V-240V wide voltage
Dimension 275×198×44mm
Type Small external box
Weight 2.1Kg
Power consumption 15W
