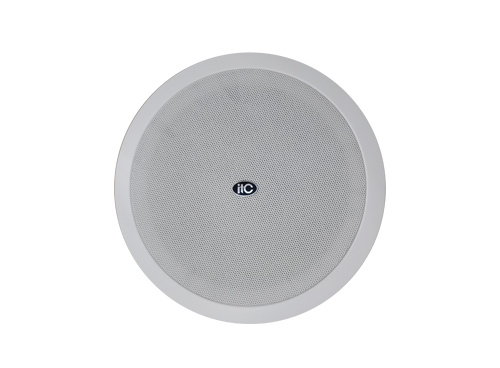

T-208A Ceiling Speaker (Coaxial Speaker) (3.75W-7.5W-15W-30W)

The Details Related Solution Related Cases Related Video Download

Features

Built-in 100v/70v transformer

Superior sound quality speaker for music & speech

In-ceiling type loudspeaker

8 ” +1.5 ” coaxial plastic speaker unit

Power taps 3.75W, 7.5W, 15W & 30 W @100V

M etal grille & ABS baffle

Paint in white color

Flush mount easy & secure installation

Description

The T- 208A is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 8 ” +1.5 ” coaxial plastic speaker driver is designed of wide frequency response 60-20KHz, the multiple power taps 3.75W, 7.5W, 15W & 30W are helpful for different applications varies from room size and ambient noise surroundings. The metal grille and ABS baffle are painted in attractive white color. Its flush mount type makes the easy and secure installation.

It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Specification

Product Model T-208A
Finish Baffle: ABS, White Grille: Steel, White
Speaker Driver 8
Weight 1.6Kg
Mounting Flush-mount dog ears
Frequency Response (-10dB) 60-20KHz
Max. SPL (Rated W/1M) 109dB
SPL(1W/1M) 94dB
Impedance Black: Com Blue:2.6KΩ Red:1.3KΩ Green:670Ω White:330Ω
Power Taps @70V 1.87W, 3.75W, 7.5W, 15W
Power Taps @100V 3.75W, 7.5W, 15W, 30W
Cutout Size 245mm
Dimensions 280 x80mm
