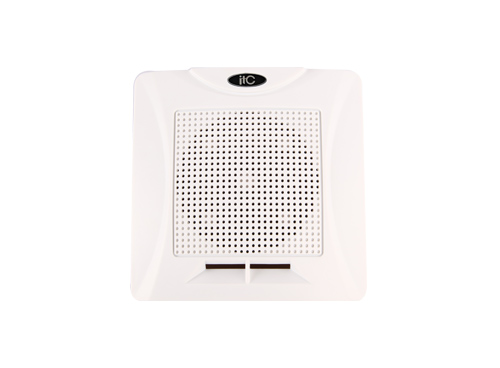

T-103E Wall Mount Speaker (1.5W-3W)

The Details Related Solution Related Cases Related Video Download


Built-in 100v/70v transformer

Wall mount and surface mount type loudspeaker

3 ” full range water-resistant speaker unit

Power taps 1.5w-3w @ 100V

ABS enclosure and ABS grille in white


The T- 103E is a water-resistant wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 3 ” full range water-resistant speaker driver is designed of wide frequency response 80-16kHz, the multiple power taps 1.5W & 3W are helpful for different applications varies from room size and ambient noise surroundings. The ABS enclosure and ABS grille are of white color. Easy and secure wall mount installation through the supplied mounting holes

It is specially designed for bathroom, clean room, washing room, sauna room and corridor applications where is humid.


Product Model T-103E
Speaker Driver 3
Power Taps @100V 1.5W, 3W
Power Taps @70V 0.75W, 1.5W
Impedance Black: Com, Blue: 6.7KΩ, White: 3.3KΩ
SPL(1W/1M) 89dB
Max. SPL (Rated W/1M) 94dB
Frequency Response (-10dB) 80-16KHz
Weight 0.5Kg
Dimensions 115 x 115 x60mm
Mounting Hook
Finish Baffle: ABS, White Grille: ABS, White
