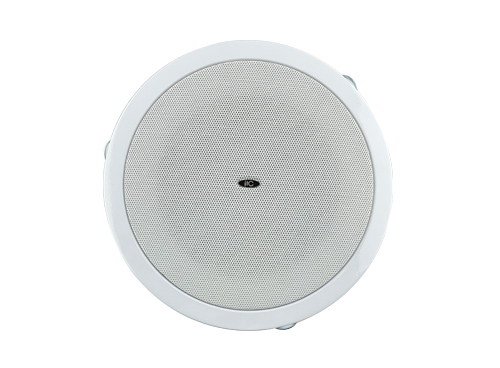

T-106 Ceiling Speaker (3W-6W-9W)

The Details Related Solution Related Cases Related Video Download


Specification:


Model

T-106

Power taps @100V

3W, 6W, 9W

Power taps @70V

1.5W, 3W, 4.5W

Impedance

 Red: 3.3KΩ

Green : 1.7KΩ White: 1.1KΩ

SPL(1W/1M)

94dB

Frequency response (-10dB)

80Hz -20KHz

Speaker driver

6"×1

Cutout size

220mm

Dimensions

246×66mm

Weight

1Kg

If reprinted, please indicate the source, the original link https:http://www.itctech.com.cn/pro/index/art/1762.html
T-106A.pdfDownload
