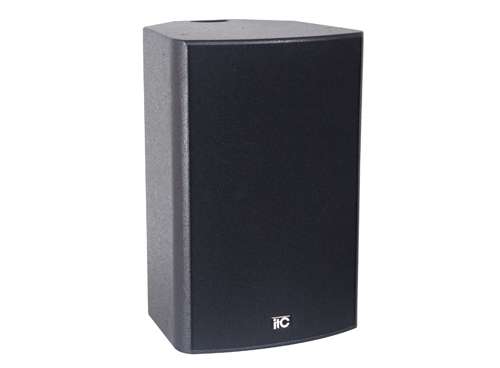

TS-608/TS-610/TS-612/TS-615 High-end Entertainment Professional Conference Loudspeaker

The Details Related Solution Related Cases Related Video Download


Description:


It works with the professional amplifiers and audio processors, forming a set of high-end professional sound system with perfect sound effects and outstanding vocal performance. It is applicable to theaters, karaoke rooms, high-end conference rooms, multi-function halls and other places. It can also work with the subwoofer to compose a high-performance satellite box.


Feature:


* Use a mid-woofer unit and a circular polyethylene diaphragm compressed tweeter unit.

* 15mm plywood housing, light weight, wear-resistant spray paint processing, and dust-proof net cotton outside.

* The frequency divider in precise design is used to optimize the vocal MF performance.

* Multiple screw hoisting holes, a pole socket with a diameter of 35mm, various installation methods.

* For acoustic simulation in AFMG EASE / EASE Evac, the TS-608 shares its acoustic data with the ITC TS-610. Please use the TS-610 GLL file for TS-608 designs. Both models have the enclosure design and dispersion characteristics, so simulation results with the TS-610 GLL are representative of TS-608 performance.


Specification:


Model

TS-608

TS-610

Impedance

8Ω

8Ω

Frequency response(-10dB)

60Hz~20KHz

60Hz~20KHz

Rated power

200W

200W

Peak Power

800W

800W

SPL (±2dB) within a specified frequency band

96dB/W/M

96dB/W/M

Coverage angle

(H)100° (V)60°

(H)100° (V)60°

Tweeter

1 .4" compressed tweeter × 1

1 .4" compressed tweeter × 1

Woofer

8" woofer × 1

10" woofer x1

Dimension (H×W×D)

246×243×442

322x295x512

Weight

9.6kg  / 15.2Kg

15.2Kg

Model

TS-612

TS-615

Impedance

8Ω

8Ω

Frequency response

50Hz~20KHz

45Hz~20KHz

Rated power

350W

450W

Peak Power

1400W

1800W

SPL (±2dB) within a specified frequency band

121dB

123dB

THD

0.967%@5.15KHz

Coverage angle

(H)80°  (V)60°

(H)80°(V)60°

Tweeter

1 .7" compressed tweeter × 1

1 .73" compressed tweeter × 1

Woofer

12" woofer × 1

15"woofer × 1

Dimension (H×W×D)

560×360×380mm

660×435×430mm

Weight

19.2Kg

25.8Kg
