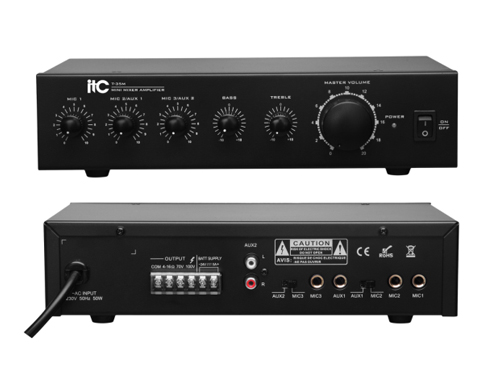

Features:
* 3 MIC inputs, 2 AUX inputs.
* 3 MIC volume control, 2 AUX volume control.
* With priority, MIC1 input is prior to other audio inputs.
* Separate treble and bass adjustment knob.
* One MIC2 / AUX1 selector switch, one MIC3 / AUX2 selector switch.
* Two types of power output: 4 ohm, 8 ohm and 70V, 100V output.
* Single-channel rated power 35W / 60W output.
Specifications:
|
Model |
T-35M |
T-60M |
|
|
Rated Power Output |
35W |
60W |
|
|
Speaker Outputs |
70V, 100V & 4~8Ω |
||
|
Input Sensitivity & Impedance |
MIC 1, 2, 3: 5mV/600Ω |
||
|
MIC2: 775mV/10KΩ |
|||
|
AUX2: 350mV/10KΩ |
|||
|
Output Sensitivity & Impedance |
MIX OUT: 1V/470Ω |
||
|
Tone |
Bass: ±10dB at 100Hz |
||
|
Treble: ±10dB at 10KHz |
|||
|
Frequency Response |
50Hz~16KHz (+1dB, -3dB) |
||
|
S/N Ratio |
MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB |
||
|
THD |
Less than 0.5% at 1KHz, 1/3 rated power |
||
|
Crosstalk |
≤50dB |
||
|
Cooling |
Fan automatically start up when temp reaches 55℃ |
||
|
Protection |
High temp, overload & short-circuit |
||
|
Power Supply |
~110V-230V 50/60Hz |
||
|
Power Consumption |
60W |
100W |
|
|
Weight |
3Kg |
3.5Kg |
|
|
Dimensions |
484 x 335 x 88mm |
||
|
Finish |
Panel: aluminum plate, black |
||
|
Case: SPCC Panel |
|||
