* Onboard VGA/HDMI display output.
* Supports DDR4 dual-channel memory, providing better support for 4K video encoding and decoding.
* Supports one-click hardware system backup and restore.
* The USB interface supports short-circuit protection; the system will not crash or restart if the power supply is short-circuited.
* Supports intelligent fan control.
* Unique design allows for plugging and unplugging of the OPS interface while it is powered on without damage.
* Enhanced USB signal driving capability, compatible with various touch screen devices.
|
Processor |
Quad-core, quad-thread, 2.5GHz |
|
BIOS |
AMI 64Mbit supports write protection, diskless boot, Wake-on-LAN, power-on, timed power-on, watchdog remote power-on/off, and intelligent device identification. |
|
Memory |
8GB |
|
Storage |
128GB |
|
IO end |
HDMI displays can achieve a resolution of up to 4096 × 2160 at 30Hz; VGA displays can achieve a resolution of up to 1920 × 1080 at 60Hz. |
|
OPS end |
HDMI displays can achieve a resolution of up to 4096 × 2160 at 60Hz. |
|
Wired network |
1-channel 10/100/1000M RJ45 interface |
|
Wireless network |
1 * M.2 A Key（For WIFI/Bluetooth Card） |
|
Interface |

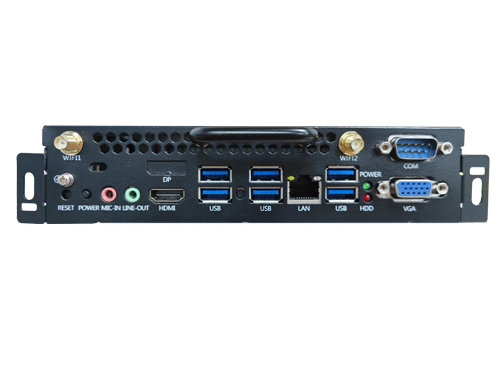

6×USB3.0, 1×COM, 1×OPS 80pin, 1×LINE-OUT, 1×MIC-IN |
|
Power supply |
DC 12~19V |
|
Watchdog |
255-level time interval |
|
Operating temperature |
Operating temperature: 0°C ~ 60°C; Storage temperature: -20 ~ 70°C |
|
Humidity |
5%~90% Non-condensing |
|
Weight |
1.53kg |
|
Dimensions (W×D×H) |
202.4×193.6×41.8mm |
