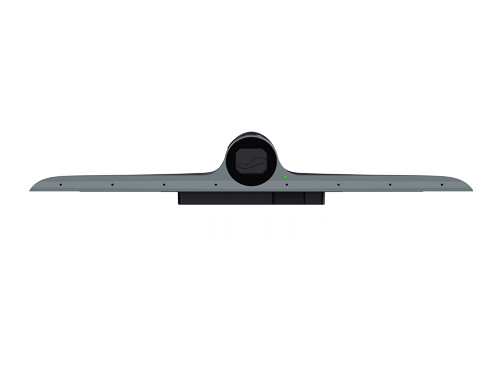

Smart Camera Module TV-S81CAM

The Details Related Solution Related Cases Related Video Download

Description:

The product is a magnetic camera array microphone module, which is used with a intelligent interactive flat panel to provide a full range of high-quality conference audio-visual solutions to meet the needs of different scenarios.

Feature:

*It has a built-in 48MP pixel high-definition camera and 8-array microphone, with a sound pickup distance of up to 12m, and has automatic noise reduction, reverberation suppression, automatic gain, echo cancellation, sound source localization, and far-field sound pickup functions.

*The camera array microphone is a detachable module with a 12-pogo pin magnetic interface design. It does not require separate wiring and uses physical protection to prevent the possibility of leakage of meeting information.

*It comes with a camera privacy cover, which allows you to turn the camera on and off with a simple physical switch.

*Combined with the intelligent interactive flat panel, it can realize various camera modes including panoramic mode, smart framing and speaker tracking.

*AI noise reduction can automatically eliminate 300 common noises, such as keyboard typing, chair moving, and air conditioning vibration.

Specification:

Camera type	Magnetic camera, pluggable, plug and play
Drive standards	UVC/UAC national standard, only supports USB2.0
Electronic PTZ	Support
Zoom	3x
Focal distance	3~5m
Lens focus	Autofocus
Camera privacy cover	Support
Pixel camera	48MP
Camera resolution	640x480 30fps、1280x720 30fps、1920x1080 30fps、2560x1440 30fps、3840x2160 30fps、4000x3000 25fps、6000x8000 5fps
Image encoding format	YUY2、MJPG、H264、H265
Maximum field of view	118°±5°
Horizontal field of view	108°±5°
Vertical field of view	69°±5°
Distortion rate	No distortion
Angle	15° downward
Image signal-to-noise ratio	≥64db
Video algorithm	Automatic exposure control AE, automatic focus control AF, automatic white balance control AWB, wide dynamic WDR, intelligent framing Auto Framing, speaker tracking
Microphone	Linear 8 mics
Microphone sound pickup distance	12m
Sensitivity	≥-32db
Audio encoding format	Little end, 10 vocal tracts/vocal tract, pcm
Sampling frequency	16k
Number of sampling bits	16bit

Audio algorithm	Adaptive noise reduction ANC, adaptive echo cancellation AEC, adaptive gain AGC, AI noise reduction,
	echo cancellation, speech enhancement, reverberation suppression, fixed beam, sound source localization, far-field pickup
Operating voltage	DC 5V±5%
Standard power consumption	≤10W
Working temperature	-25℃-80℃
Storage temperature	5℃-40℃
Working humidity	40%RH-60%RH
Working altitude	≤5000m
Service life (warranty)	12 months
Length of use	7*18 hours
Bare machine size (L×W ×H) (mm)	301×61×46
Packaging size (L×W ×H) (mm)	340×101×77
Net weight (g)	168±3
Gross weight (g)	303±5
Shell color	Black
Shell material	Aluminum profile/plastic
