TZ-OPIA9 Wireless Microphone

The Details Related Solution Related Cases Related Video Download


Features:


1. It supports adjustable transmission power, including high and low transmission power, to meet the needs of different scenarios.

2. It features ID code anti-crosstalk function, using a 32-bit unique ID code for receiving and transmitting pairing. The receiving and transmitting ID codes must be the same for pairing, which can effectively prevent signals of the same frequency from interfering with each other.

3. The desktop microphone has a 0.96-inch LCD display that can show frequency information, audio encryption status, power level, mute status, and battery level.

4. The desktop microphone has four battery slots, with each battery providing up to 15 hours of use; it can be expanded to four batteries for  up to 60 hours of continuous speaking.

5. The desktop microphone supports audio input via a 3.5mm headphone jack.  6.Suitable for venues such as meetings, training sessions, and public address systems.

7. Easily pair the desktop microphone with the receiver host via infrared scanning and synchronization.

8. It supports automatic frequency scanning, which can quickly find a clear frequency for the desktop microphone. 9.The desktop microphone supports charging via a Type-C port.

10. It supports reverb adjustment, with 15,625 reverb effects, and adjustments for effect percentage, reverb delay, and reverb amplitude.  Each of the three sound effects has 25 levels of adjustment.

11. It supports microphone equalizer high, mid, and low frequency adjustment functions, with 2197 equalizer settings and three adjustment levels, each with 13 levels of adjustment.

12. The desktop microphone has a one-button mute function, making it highly practical.

13. The desktop microphone features one Type-C charging port, one 3.5mm headphone input jack, one LCD display, one power  switch button, and one touch-sensitive microphone switch button.

14. It  adopts digital U-band transmission technology, pi/4-DQPSK modulation, and  uses domestically produced main control chips, which  has strong anti-interference ability, low bit error rate, and stable transmission.

15. Desktop microphone battery life (single battery): Supports 15 hours; one device can be expanded to 4 batteries for up to 60 hours of continuous speaking.

16. It supports audio encryption. When enabled, the desktop microphone and receiver use a unique ID code pilot encryption technology to prevent crosstalk between devices.


Specification:




Frequency range

470MHz-510MHz, 540MHz-590MHz, 640MHz-690MHz, 807MHz-830MHz

Frequency response

20Hz~20kHz (±3dB)

Modulation method

pi/4-DQPSK

Signal-to-noise ratio

≥105dB (XLR)

THD+N

<0.1%

Transmission distance

80 meters

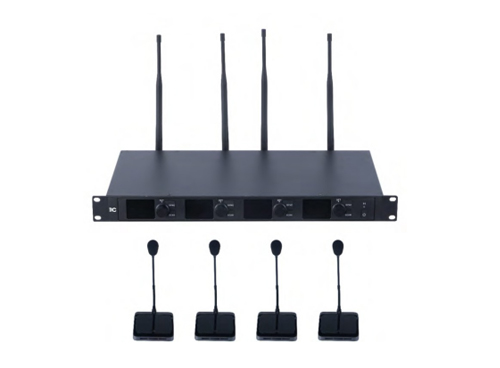

System

One receiver host + four gooseneck microphone desktop microphones

Receiver

Features four 2.2-inch LCD displays, four encoding knobs, four physical frequency scanning buttons, four physical infrared pairing buttons, one power switch  button,  one  dual-indicator  indicator (infrared transmitter + pairing indicator), one LINE-OUT interface, four XLR-OUT interfaces,

four BNC interfaces, and one DC interface.

Receiver antenna interface

BNC/impedance 50 ohms

Receiver dimensions (L×W×H)

482.6×223×43.6mm

Receiver weight

2.55kg

Receiver sensitivity

<-95dBm

Receiver maximum output

Balanced output 500mV, Unbalanced output 1000mV

Receiver power supply

DC 12V/1A

Receiver operating current

550mA

Receiver unit

Features four balanced outputs and one unbalanced mix output.

Desktop microphone weight

0.93kg

Desktop microphone boom

Gooseneck long microphone boom

Desktop microphone output power

≥5dBm (high power)

Desktop microphone charging time

2.5 hours

Desktop microphone battery

18650 lithium battery *1

Desktop microphone dimensions

136×140×48.5mm (excluding microphone pole)
