It is suitable for supermarkets, schools, KTV and other music playing places.
* The audio source has multiple inputs such as optical fiber, coaxial, USB, Bluetooth, line, microphone, etc.;
* Built-in DSP sound effect processing. With functions such as delay, reverberation, echo, anti-howling (level 7), tone shift (level 10), and vocal excitation;
* The control function is realized through infrared remote control, coded switches, and buttons;
* Panel LCD screen intuitively displays of various functions and working status;

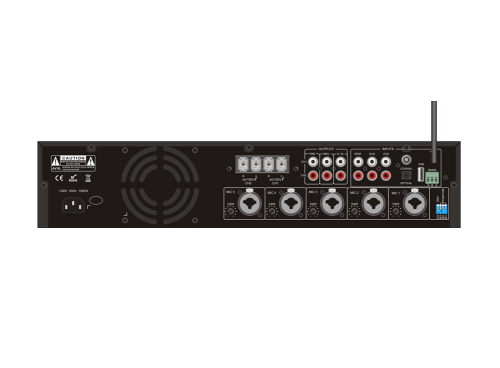

* With 3RCA line inputs and 5 channel balanced microphone ( 3 mics with Phantom power)inputs;
* With DSP processor, multiple preset scene modes;
* The volume of each microphone is independently adjustable, the effect is adjustable, and the music volume is independently adjustable.Treble, Alto, Bass adjustment;
* Built-in RS485 communication central integrated control function， ；
* Support USB playback, support MP3, WAV, APE, FLAC and other lossless high-fidelity music formats;
* With the soft start protection function of switch , with voltage limit, short circuit, overload, and overheat protection;
* Panel: Aluminum alloy material;
* Built-in 48V phantom switch control function;
* Support Bluetooth function. It can connect with mobile phones, computers and other devices;
* Each microphone input has a gain adjustment function, enabling the microphone can best match the input status of the power amplifier.
|
Model |
TIPAK-60ME |
|
|
Rated output power |
60W@4R 60W@100V |
|
|
Input sensitivity and impedance |
MIC1, 2, 3,: ±2.5mV/600Ω- ±200mV/10KΩ, with phantom balanced input) DVD: 350mV/10KΩ, (unbalanced input) VCD: 350mV/10KΩ, (unbalanced input) BMG: 350mV/10KΩ, (unbalanced input) Optical fiber, coaxial:1000mV |
|
|
Output |
SW (150Hz): 1V/470Ω PRE: 1V±50mv/470Ω REC: 200mV±20mv/470Ω |
|
|
Microphone tone |
Bass: ±10dB at 100Hz Alto: ±10dB at 2KHz Treble: ±10dB at 10KHz |
|
|
Music tone |
Bass: ±10dB at 100Hz Alto: ±10dB at 2KHz Treble: ±10dB at 10KHz |
|
|
THD |
Power amplifier rated output power 1Kz (under 1/8A power condition) ≤0.1% |
|
|
USB playback |
Support MP3, WAV, APE, FLAC |
|
|
Communication |
RS485 communication central control integrated control function |
|
|
Frequency |
DVD, VCD, BGM: 20HZ (±3dB)-20KHZ (±3dB) |
|
|
response |
Mic: 50HZ (±3dB)-16KHZ (±3dB) |
|
|
SNR |
Mic: ≥85dB, Music: ≥85dB |
|
|
Protection |
Overload, short circuit, overvoltage and undervoltage protection. |
|
|
Indicator light |
Power supply, output level |
|
|
Supply voltage |
~220V 50Hz |
|
|
Power loss |
650W |
|
|
Weight |
6.6Kg |
|
|
Size(LxWxH) |
430x335x88mm |
|
|
|
||
|
Project |
|
Description |
|
CPU & Memory |
CPU Memory Memory Display |
ARM9 400M 64M 16M 3.5 inches |
|
Screen |
Resolution Number of Colors Touch |
320*240 24-bit full color (16.7M colors) Single point + gesture capacitive touch screen |
|
Peripherals & Interfaces |
Serial Port Matching bottom box |
Rs485 86 Bottom box |
|
Working Environment |
Power Input Maximum Power |
DC 12V 2W |
