The operating carrier of IP network digital broadcast server software is the control center of the broadcast system. Installed in the main control room, it can effectively manage the entire broadcast system in real time.

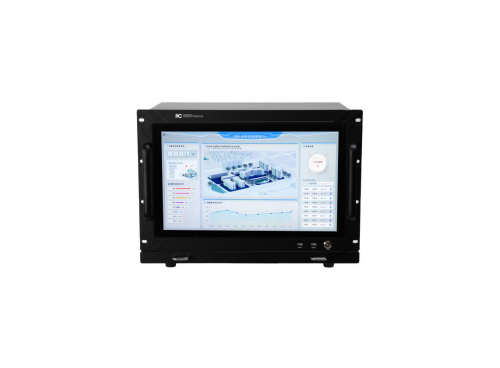

* Industrial control chassis design, using high-strength aluminum alloy panel, metal shell, high-temperature paint, simple and elegant appearance.
* The dust-proof air duct design is adopted, which has low noise, high dust resistance, fast heat dissipation and stable operation of the whole machine.
* Pure industrial design, excellent heat dissipation structure, strong anti-electromagnetic interference.
* Pull-out keyboard and mouse design, VGA+DVI high-definition output interface, supports Blu-ray high-definition hardware decoding, and supports network or local 1080P video.
* It has a short-circuit trigger startup interface, which is used for timing drive startup of external equipment to realize unattended function.
* Supports recording storage function, and the recording file save path can be customized in the background.
|
Display |
17.3-inch capacitive touch screen |
|
Resolution |
1920(H)×1080(V) |
|
Brightness |
300cd/m² |
|
Viewing angle |
80/80/85/85 (up/down/left/right) |
|
Touchscreen |
Ten-point capacitive touch screen |
|
Processor |
Zhaoxin processor (8 cores, 8 threads, 2.7GHz main frequency) |
|
Memory |
1×8G DDR4 desktop memory as standard |
|
Network port |
2×Gigabit RJ45 interface |
|
Hard disk slot |
Standard 1×256G M.2 solid state drive, supports expansion of 1×2.5" or 1×3.5" hard drive |
|
I/O interface |
1×VGA interface, 1×DVI interface, 2×LAN interface, 6×COM RS232 interfaces (COM3/4 supports RS232/RS485), 4×USB2.0 interfaces, 4xUSB3.0 interfaces, 1×PS/2 interface, 1×MIC IN interface, 1×LINE OUT interface, 1×LINE IN interface, 1×TRIGGER INPUT interface |
|
Working temperature and humidity |
0℃-50℃, 5%～95% (non-condensing state) |
|
Storage temperature and humidity |
-10℃-60℃, 5%～95% (non-condensing state) |
|
Power supply |
AC100-240V 300W |
|
Installation |
Rack-mount or desktop design |
|
Operating system |
Pre-installed domestic operating system |
|
Net weight |
20kg |
|
Dimensions (L x W x H) |
484×339.5×353.5mm |
