Features:

1.Maximum input level (XLR/TRS): +19dBu/+29dBu 2.Input impedance (XLR/TRS): MIC > 5KΩ, LINE > 10KΩ 3.Input sensitivity: X L R1.5mV, TRS 7mV

4.Input analog gain: -32dB to 10dB, in 0.6~0.7 steps. 5.Output impedance: <75Ω

6. It has four network ports in two groups, A and B, and does not require an extender or router. It can be connected to the expansion port of a digital mixing console through any group of CAT network cables to achieve long-distance transmission of 32 inputs and 16 outputs; the network transmission has ultra-low latency; the transmission distance of CAT6 cable is 80m.

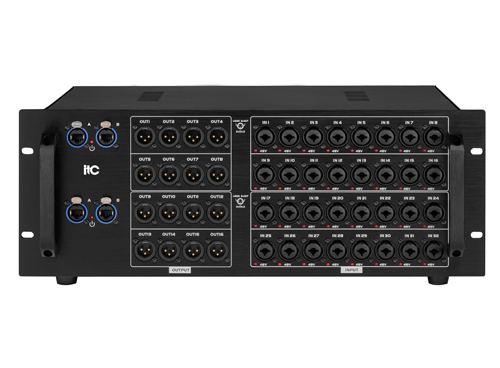

7. The device has 32 input channels with phantom power capability; it also has 16 analog balanced XLR output channels and supports grouping functionality.

8. The device can be remotely powered on and started via a digital mixing console.

9. Dynamic range: 112dB; Signal-to-noise ratio: XLR≥92dB, TRS≥82dB; Frequency response: 20Hz-20kHz.

9. Dynamic range: 112dB; Signal-to-noise ratio: XLR≥92dB, TRS≥82dB; Frequency response: 20Hz-20kHz.

Specification:
