TH-3110BCL Bed extension

The Details Related Solution Related Cases Related Video Download


Description:

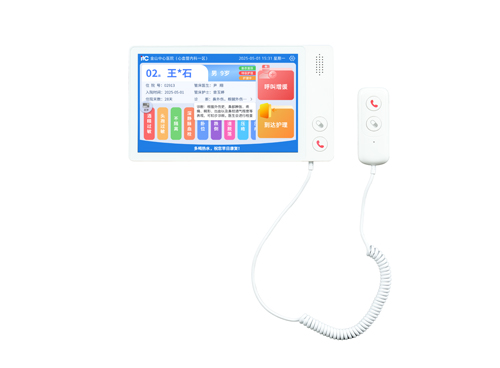

The bedside extension features a capacitive touchscreen, Linux operating system, and a handheld call handle. Mounted on the bedside strap, it displays bed number, name, gender, age, medical insurance type, nursing level, hospitalization number, admission date, hospitalization days, attending physician, attending nurse, and medical history. Patients can call the nurse station using either a virtual on-screen button or a keypad.


Features:


* Supports two-way intercom with the medical host, and supports host calling and releasing calls.

* Nurses can enter the nursing mode through the bed extension. The ward door phone, corridor display screen, and medical host will all display the corresponding nursing status. The corresponding door light will be constantly green as a reminder, which can help nurses locate the position.

* Supports access to emergency buttons, which can send alarms to the medical host at the nurse station.

* It supports displaying bed number, name, gender, age, medical insurance type, nursing level, hospitalization number, admission time, number of days in hospital, attending physician, attending nurse, and symptom information.

* Supports displaying label information of background configurations such as security precautions, diet categories, drug reactions, and isolation categories.

* It supports one-click screen off, supports displaying emergency notifications, fire instructions and other information, and can receive broadcasts and calls from the broadcast host.

* The bottom information box supports playing and displaying the ward slogans issued by the background ward in the form of page breaks.

* Supports virtual buttons to call for reinforcements and arrive for nursing work.

* Supports synchronizing server time, adjusting ringtone volume, and one-click factory reset.


Specifications:


Screen size

10.1-inch IPS HD screen

Resolution

1280 × 8 00

Screen ratio

16:9

Touchscreen

Capacitive touch

Operating system

Linux systems

Memory

64M

Storage

256M

Audio decoding format

PCMA

Device buttons

Body and handle buttons: dressing call , normal call

Network interface

10M- 100M LAN auto-negotiation

Device interface

The handle has 5-pin wiring port, and the 6-pin port is for two-way alarm input +12V, alarm power supply +RS485

Speaker

8Ω×1W, mono

Maximum power consumption

5W

Standby power consumption

1.5W

Working current

380 mA

Operating temperature

-10℃~+55℃

Operating humidity

20%~80%

Operating voltage

DC12V

Power supply mode

Standard POE Power supply or DC12V power supply

Body material

ABS

Installation

Embedded installation of hanging panels

Dimensions (W × D × H)

278.5 × 22 × 161.5mm

Weight

560g
