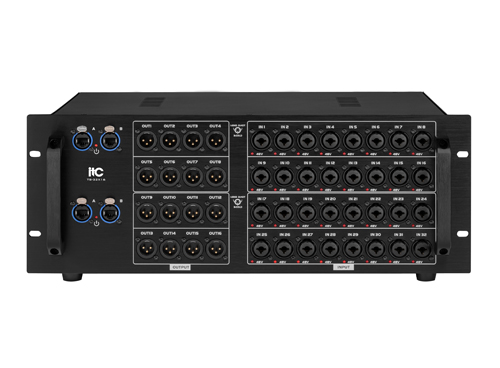

* The device has 32 input channels with phantom power supply function; it has 16 analog balanced XLR output channels and supports grouping function.
* two groups of four network ports, A and B. No expander or router is required. It can be connected to the extended network port of the digital mixer through any group of CAT network cables to achieve long-distance transmission of 16-channel audio. The network transmission has ultra-low latency. The transmission distance of CAT6 cable is 80m.
* The device can be powered on and started remotely via a digital mixer.
* The whole machine is made of high-quality components; the solid and durable structure ensures a long service life.
|
Input |
|
|
Mic/Line input: 1-32 |
Balanced, XLP and 1/4 TRS jacks |
|
Input sensitivity (XLR/TRS) |
XTR1.5mv,TRS 7mv |
|
Input analog gain |
-32db to 10db, 0.6~0.7 step |
|
Maximum input level (XLR/TRS) |
+19dBu/+29dBu |
|
Input impedance (XLR/TRS) |
MIC＞5K, LINE＞10K |
|
Output |
|
|
Mixer 1-8AUX (SD32 is 1-16) |
Balanced, XLR, |
|
Output Impedance |
<75Ω |
|
Nominal output |
+4dbu = 0dB level meter reading |
|
Residual output noise |
=-91dbu |
|
Dynamic range |
112dB |
|
Signal-to-noise ratio |
XLR≥ 92db,TRS≥82db |
|
Maximum output voltage |
7VAC MAX |
|
Distortion |
＜0.0003%（1KhzFull Power） |
|
Frequency response |
20HZ-20KHZ+/-0.5db |
|
Machine size |
485*325*195MM (length includes 6.35 input seat, width includes side panel, height includes machine feet; knobs are not included) |
|
Net weight |
6.4kg |
|
Gross weight |
8kg |
|
Packing size |
550*370*150mm |
