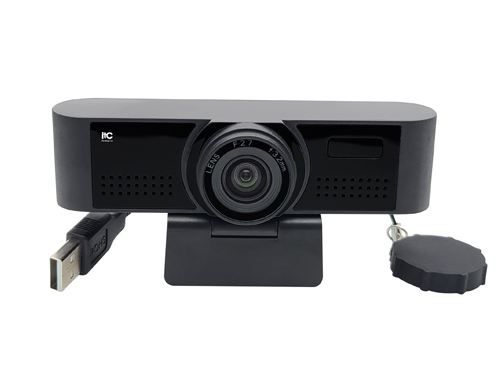

* Support 1080P Full HD, provide a maximum of 1080P@30fps/25fps image encoding output, backward compatible with 720P and other resolution.
* Support wide field of view, horizontal field of view up to 83°.
* Support full-featured USB 2.0 port, integrate power supply, video and audio.
* Built-in microphone, omnidirectional pickup, and the pickup distance is up to 6 meters.
* Support original noise suppression algorithm.
* The new CMOS image sensor with super high SMR of starlight can effectively reduce image noise in low illumination conditions; 2D and 3D noise reduction algorithms can greatly reduce image noise, keeping the picture clean and clear even in ultra-low illumination conditions; the image SNR is as high as 55dB or more.
* Come with a standard damping rotary shaft bracket, suitable for 100% of the displays on the market, easy to install, stable and reliable.
|
Model |
TV-MU610 |
|
Sensor |
1/2.7 inches, CMOS, effective pixel: 2.07 million |
|
Scanning method |
Progressive scanning |
|
Lens type |
M12 |
|
Lens 1 |
Focal length: f=3.2mm, horizontal field of view: 83° |
|
Minimum illumination |
0.5 Lux @ (F2.0, AGC ON) |
|
Electronic shutter |
1/30s ~ 1/10000s |
|
White balance |
Auto, manual, specified color temperature |
|
Camera bracket |
Standard damping rotary shaft bracket |
|
Digital noise reduction |
2D&3D digital noise reduction |
|
BLC |
Support |
|
Operating system |
Windows® 7 (1080p and below only), Windows 8.1, Windows 10 or higher macOS™ 10.10 or higher Google™ Chromebook™ Version 29.0.1547.70 or higher Linux (UVC support is required) |
|
Color space/compression |
YUY2 / H.264 / MJPEG |
|
Video format |
1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/25fps, 640x360p@30fps/25fps |
|
USB video communication protocol |
UVC 1.1 |
|
USB port |
1 USB 2.0 port |
|
Input voltage |
5V (USB powered) |
|
Working temperature |
0°C ~ 40°C |
|
Power consumption |
1W |
|
Dimension |
118×37.2×30.8mm |
|
Net weight |
0.093kg |
