Description:

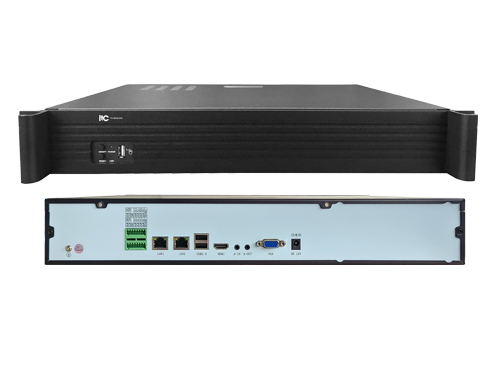

This product is an H.265+ 64-channel intelligent DVR, supporting 64 channels of 4K camera input and output. It supports intelligent analysis features, the ability to modify the IP addresses of third-party cameras, adjust the light board mode, and audio output. It also supports online upgrades and USB flash drive upgrades for our cameras, accommodates 4 x 16TB hard drives, has 1 HDMI, 1 VGA, and 3 USB ports. Additionally, it supports mobile monitoring and IO alarm output with 4 inputs and 4 outputs.

Features:

* Mode 1: Supports access to 36-channel cameras ( 8MP/D1+36-channel preview+16-channel playback );

* Mode 2 : Supports access to 64-channel cameras ( 8MP/D1+64-channel preview+16-channel playback );

* Supports H265, H264, H265+ three -stream decoding;

* Supports synchronous recording, remote monitoring, and backup recording in MP4 format, which can also be viewed on mobile phones;

* Supports VGA/HDMI synchronous output;

* Supports electronic zooming of preview and playback images;

* Standard RTSP, GB28181, ONVIF protocols;

* Supports RTMP streaming;

* Alarm capture and alarm email sending functions;

* Supports DDNS, UPNP, NTP, P2P and other functions;

* Supports WEB, mobile phone monitoring, and client IMS monitoring;

* Supports our company's SMART IPC human and vehicle detection: human shape detection, boundary detection, vehicle wrong-channel driving, personnel off-duty, personnel loitering, area intrusion, and illegal parking of vehicles;

* Supports channel patrol grouping;

* Supports network detection (network traffic monitoring, network packet capture, network diagnosis) functions;

* Supports 4- channel 4K video synchronous playback and 16-channel 1080P synchronous playback;

* Supports manual and automatic addition of IPC in LAN;

* Supports online upgrade and USB flash drive upgrade IPC;

* Supports maintenance of private protocol IPC , including IPC default restoration, restart, opening and closing full network access, etc.

* Supports the function of re-recording when the network is disconnected;

* Supports selection of video stream mode;

* By default, it supports up to 64 split-screen displays;

* The device output has 11 video modes, and the output forms in different working modes are:

①　1-Split Mode: supports 1-channel 1200MP signal decoding output;

②　2- split mode: supports 2- channel 4K signal output at the same time;

③　4- split mode: supports 4- channel 4K signal output simultaneously;

④　6- split mode: supports 1 4K signal + 5 1920 × 1080@60 signals output simultaneously;

⑤　8-split mode: supports 1 4K signal + 7 1920 × 1080@60 signals output simultaneously;

⑥　9-split mode: supports 9-channel 1920 × 1080@60 signal output simultaneously;

⑦　1 0- split mode: supports 10 channels of 1920 × 1080@60 signal output simultaneously;

⑧　1 6- split mode: supports 16 channels of 1920 × 1080@60 signal output simultaneously;

⑨　25- split mode : supports 25- channel D1 signal output simultaneously;

⑩　36- split mode : supports 36- channel D1 signal output simultaneously;

⑪　64- split mode : supports 64- channel D1 signal output simultaneously .
