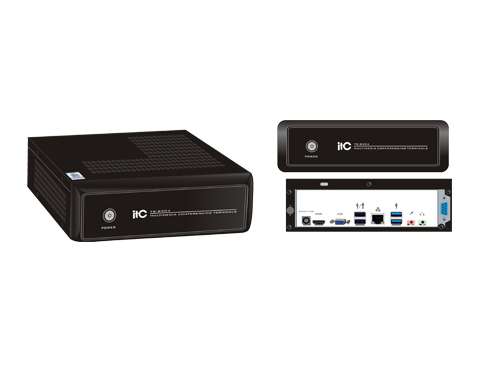

TS-8304B2 Paperless Conference System Terminal

The Details Related Solution Related Cases Related Video Download


Feature:


* The multimedia conference controller, working with the terminal embedded software, is responsible for the file push, file distribution, browsing and reading, file annotation, sign-in, voting, electronic whiteboard, electronic nameplate, conference communication, conference service, and video signal interconnection, conference management, screen sharing and other applications during the conference process.

* Applied to various high-end meeting occasions, as well as important government affairs, business, enterprises and institutions and large-scale event venues.

* Support paperless conference mode and ordinary computer mode, support flexible switching.

* Support viewing various file formats, including common formats such as doc/ docx /xls/ xlsx /ppt /pptx/ pdf /txt/jpg/png, etc. Participants can only view files with permission.

* Meeting notes can be made at any time during the meeting, which can be downloaded locally.

* Support screen sharing, participants can share the local screen to other participants during the meeting, and support cross-platform (windows/Android) sharing (related hardware is required).

* The personal center module supports uploading and viewing materials before and during the meeting (cannot be viewed before the confidential meeting); support downloading the materials after the meeting.

* After the meeting, the terminal automatically clears the local meeting files.


Specification:


Model

TS-8304B2

CPU

Intel Core I5 (Quad Core)

(Due to frequent product upgrades, its performance will continue to be optimized)

RAM

DDR4 8G

Hard drive capacity

256GB SSD

Network port

1×Gigabit LAN, RJ45 port

Standard port

4×USB (3.0/2.0), 1×HDMI, 1×VGA, 1×LAN, 1×MIC-IN port, 1×LINE-OUT port, 1×DC port, 1×COM port

Ambient temperature

-10℃~50

Relative humidity

0%95%, no condensation

Working power

DC 18.5V/6.5A 120W

Power consumption

65W

Dimension

216×191×61mm (L×W×H)

Weight

1.309kg

Color

Black
