Description:

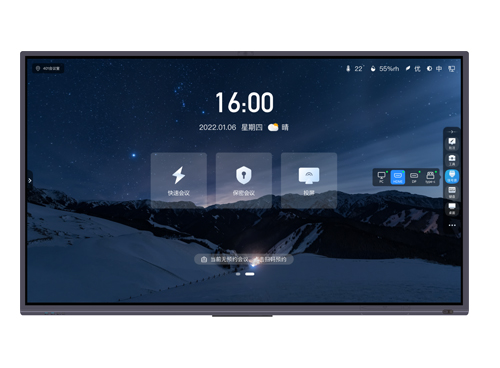

The interactive flat panel integrates application modules such as presentation, writing, interaction and sharing to create a simple paperless meeting/teaching scene, and to easily realize an efficient, convenient and harmonious meeting/teaching method.
Feature:
* 4K UHD display, zero lamination design, AG tempered glass, high color gamut.
* Built-in Android operating system, support optional ultra-thin plug-in PC module.
* High degree of touch algorithm optimization, fast response, high writing and presentation fluency.
* Support operating signal source, volume and others by touch under the display status of signal sources.
* Support anti-light interference, use as usual under direct sunlight
* Support HDMI channel signal input smart wake-up function in standby mode.
* Support touch menu, including return key, menu operation, task preview, channel switching, volume adjustment, shortcut whiteboard, etc.
* Support any channel writing annotation function.
* Support channel memory function, enter the home page by default when booting, support custom named channel function.
* In standby mode, HDMI channel signal input intelligent wake-up.
* Support wireless screen transmission.
* Support WIFI 6.
* Support intelligent light sensing to adjust backlight.
* Support recording screen, electronic whiteboard and handwritten annotation, can meet various requirements of training classes.
Specification:
|
Model |
TV-75810 |
|
Processor |
Quad-Core A55 quad-core, Mali-G52 MP2 dual-core |
|
OS |
Android 11 |
|
RAM |
4GB |
|
Storage |
32GB |
|
Screen type |
LED LCD screen |
|
Screen size |
75 inches（16：9） |
|
Screen display size |
1650.24mm(H) x 928.26mm(V） |
|
Physical resolution |
3840（H）×2160（V） |
|
Pixel pitch |
0.14325x 0.42975mm |
|
Color gamutNTSC(Typ) |
72% |
|
Response time |
Typ：8.5ms Max：12ms |
|
Refresh rate |
60Hz |
|
Chromaticity |
1.07G（8bit+FRC） |
|
Brightness |
320cd/㎡ |
|
Contrast |
5000:1 |
|
Viewing angle |
178°(H/V) |
|
Backlight lifespan |
≥50000h |
|
Audio channel |
2.0 |
|
Speaker |
2 x 15W@ 8Ω |
|
Input port |
TYPE-C*2；HDMI口*1；TUOCH口*1；USB3.0*2；HDMI2 IN*1；HDMI1 IN*1；RJ45 IN*1；AUDIOIN*1；VGAIN*1；DPIN*1； |
|
Output port |
OPTICAL OUT*1；USB2.0*1；TOUCH*1；USB3.0*2；WIFI*4；HDMI OUT*1；RJ45 OUT*1；LINE OUT*1 |
|
Communication port |
RS232*1 |
|
Touch embedding mode |
Built-in all-in-one, non-external design |
|
Touch sensing technology |
Infrared induction recognition touch technology; PC: 20 points / Android: 10 points |
|
Writing method |
Fingers, stylus or non-transparent objects larger than 5mm in diameter (multi-touch 8mm) |
|
Writing height |
2.5mm |
|
Writing screen surface hardness |
7H |
|
Output coordinates |
32767(W)*32767(D) |
|
WiFi |
802.11a/b/g/n/ac/ax+Bluetooth5.0，working frequency: 2.4GHz/5GHz, working distance: 12m |
|
Power supply |
100-240V~50/60Hz input |
|
Standard power consumption |
320W |
|
Standby power consumption |
≤0.5W |
|
Working temperatur |
0℃～40℃ |
|
Working humidity |
≤80%RH |
|
Overall size（L*H*D） |
1714.80mm*87.42mm*1032.50mm |
|
Package size（L*H*D） |
1812*230*1150mm |
|
Weight |
Net weight: 61.8±1kg：gross weight:81.3±2kg |
