Features：
* Ambient noise sensor for ambient noise controller.
* The system support both serial connection parallel connection.
* The system sensor capacity is 16 units.
* Max 16 units sensor can be connected to four channels or one channel.
* End-user self defined sampling frequency period.
* Collect the surrounding ambient level and feedback to controller.
* Full digital sensor solution for more accurate detection.
* Cascaded connection by line in and line out.
* High & low filter frequency adjustable.
* Max communication distance is 3kms.
* Communication cable through universal speaker cable.
Specifications：
|

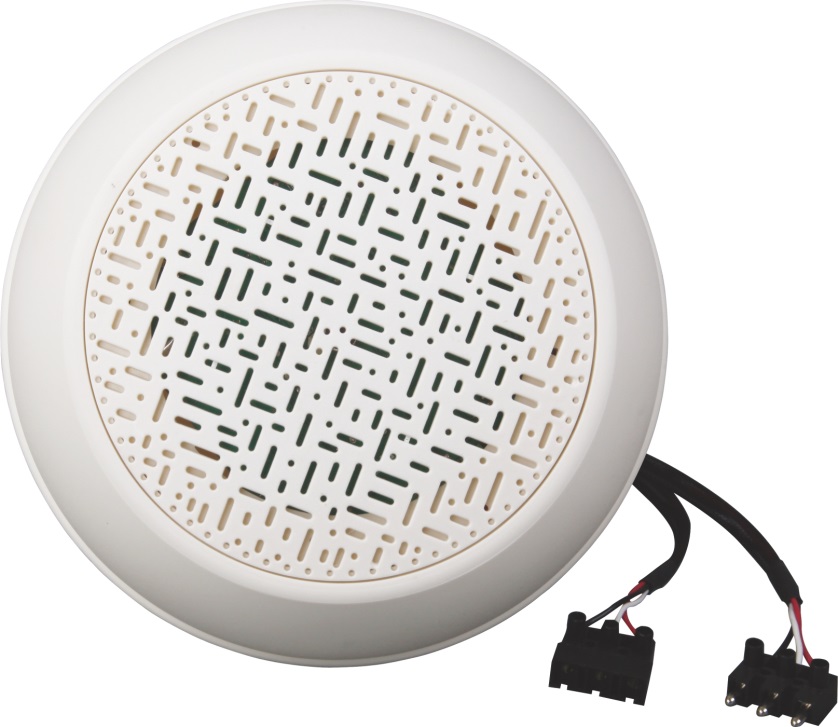

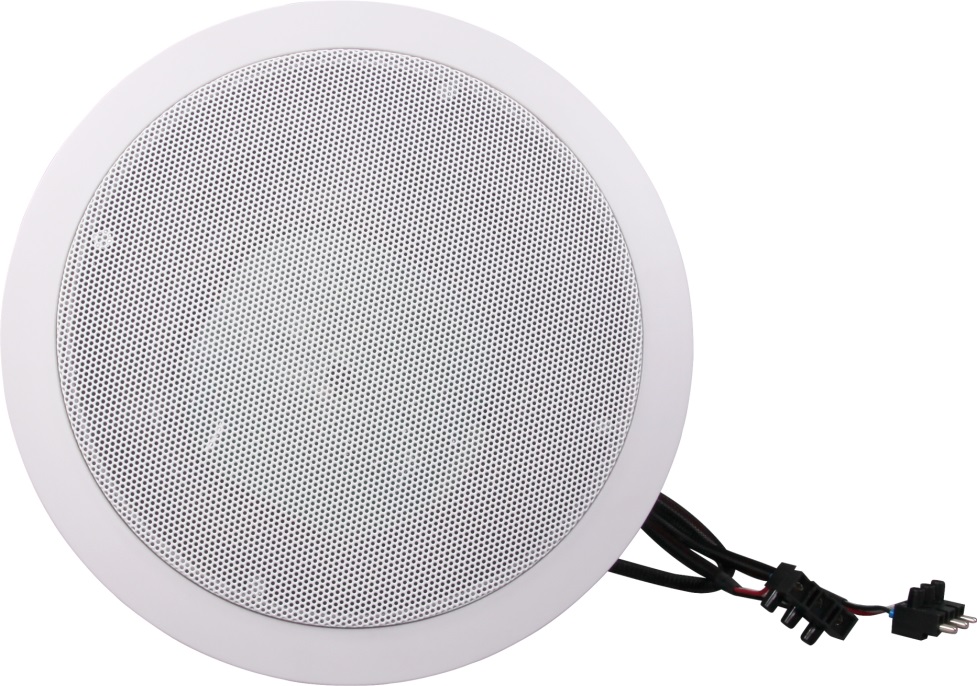

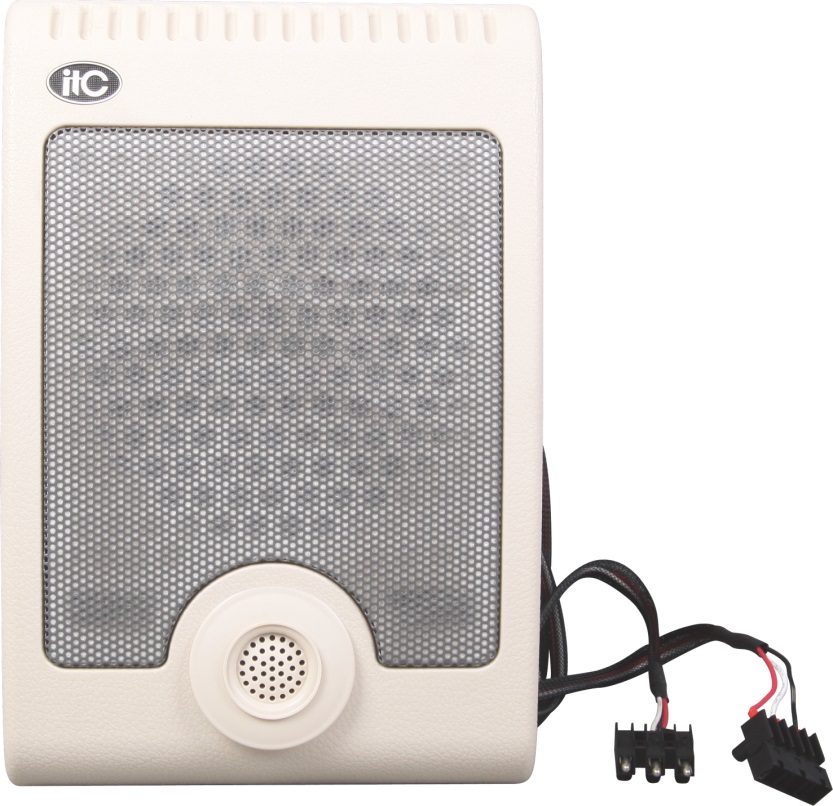

Model |
T-6251A |
T-6251B |
T-6251C |
||
|
Microphone Type |
Condenser microphone |
||||
|
Communication Model |
Bus line |
||||
|
Noise Frequency Filter |
4 |
||||
|
Output Level |
1V/600Ω |
||||
|
Frequency Response |
80-18KHz(+1/-3dB ) |
||||
|
THD |
≤1% |
||||
|
Power Consumption |
4W |
||||
|
Communication Distance |
3KM |
||||
|
Power Supply |
~110V-230V 50/60Hz |
||||
|
Dimension |
240 x 155mm |
205x205mm |
185 x 275 x 105mm |
||
|
Weight |
0.9kg |
0.6kg |
1kg |
||
