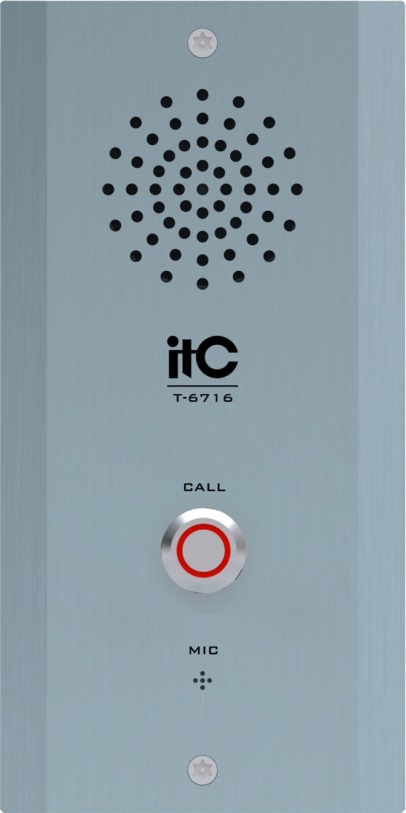

T-6716/ T-6717/ T-6718/ T-6719 Single Key Intercom Panel

The Details Related Solution Related Cases Related Video Download



Features:


* Double 86-size backbox design, compatible with electrical standard, easy to install.

* There are two options: single call key (emergency) and double call keys (emergency + business consulting). It can be installed in wall or on wall ( with backbox ).

* One key start a call for target terminal, full-duplex communication, achieve simple operation, fast connection.

* Hand-in-hand connection design, it can be extended with 15 panels at most. The longest distance is 1200 meters with CAT5 cable. 24V DC power supply will be required every 6 panels or every 30 meters distance. With the additional power supply, the distance between intercom panel and controller can be 1200 meters.

* Built-in non-polarity MIC and amplifying circuit, realizes the high sensitivity field sound collection.

* Built-in 2W high-fidelity full frequency speaker, making the sound clear and loud.

* The panel has anti-tamper alarm function to ensure higher safety.

* High protection grade, adopting alloy material and anti-dismantle screw.


Specifications:

Product Model T-6717 T-6716
Environment Humidity 20%~80% Relative humidity, without condensation
Weight 0.6Kg
Size 172 x 86 x 23mm
Power Output 2W/4 Ω
Assist MIC Input Sensitivity( Unequilibrium ) 10mV
Environment Temperature -20 ℃ ~60 ℃
Protection Level IP55
Power Dissipation ≤ 3W
Electrical Interface Stardand RJ45 input
Support Protocol RS485
Signal to Noise Ratio >70dB
Harmonic Distortion ≤ 1%
Frenquency Response 80Hz~16KHz
