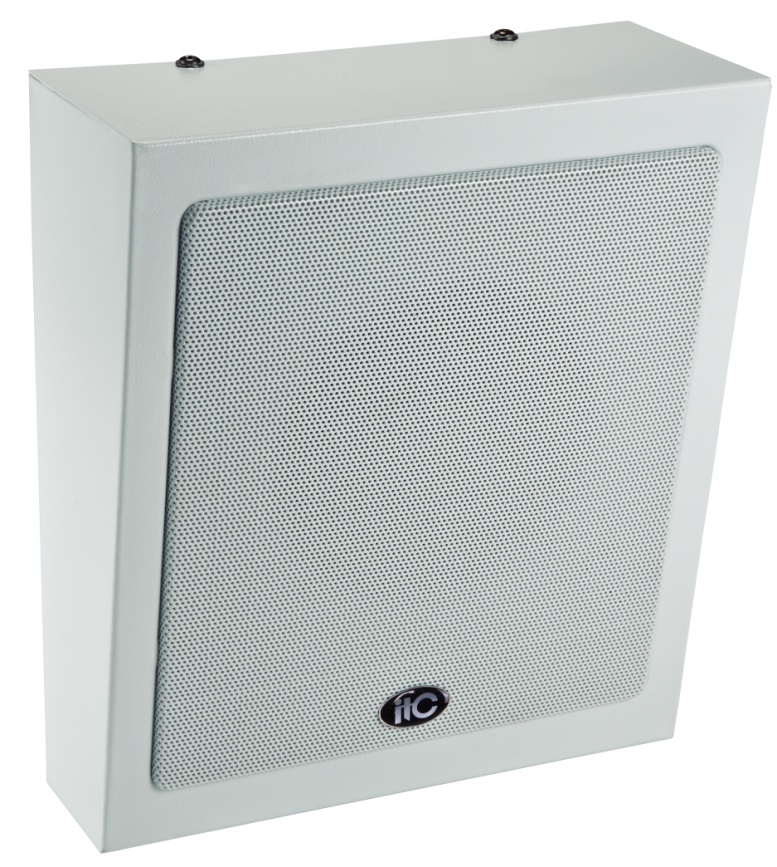

VA-515 Fireproof Wall Mount Speaker

The Details Related Solution Related Cases Related Video Download

Descriptions:


5" fireproof version wall mount speaker

Ceramic connector, thermal use and fire-resistant cable

4 power taps at 100V output

All metal material design with fire proof box

Fast installation by screw hook

Excellent response for background music and voice message

EN54-24 certification is under taken


Model

VA-515

Power Taps @100V

0.75W, 1.5W, 3W, 6W

Power Taps @70V

0.37W, 0.75W, 1.5W, 3W

Impedance

Com/13.3KΩ/6.7KΩ/3.3KΩ/1.7KΩ

SPL(1W/1M)

91dB  ±3 dB

Max. SPL (Rated W/1M)

99dB

Frequency Response (-10dB)

100-16KHz

Finish

Baffle: Steel, White    Grille: Steel, White

Speaker Driver

5" x 1

Cutout Size

/

Dimensions

245 x 212 x 95mm

Weight

1.9Kg

Mounting

Hook
