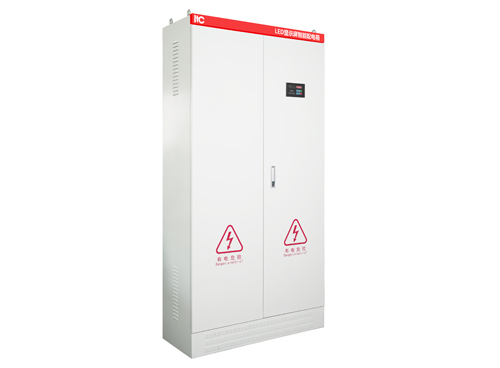

Electric Box KZX(TV-C8150KW)

The Details Related Solution Related Cases Related Video Download



Description:


Multi-function card power distribution cabinet adopts "step-by-step delayed power on" to avoid the instantaneous impact of large loads on the power grid, effectively protect the electronic components of the display body and prolong the service life of the display, with the use of multi-function card to improve the overall performance of the LED system.


Features:


* Manual control: start and stop with one click, power on and off step by step

* Time control: set 4 groups of control time periods

* With high temperature power outage, surge, short circuit, overcurrent, overload and other protection functions

* Built-in lightning arrester, with lightning protection function, level II lightning protection

* The power distribution cabinet contains multi-function card control, with remote control function, RS232 serial port or Gigabit network port communication

* Through the LED display intelligent control system software and the multi-function card, operations such as power monitoring, temperature monitoring, and brightness adjustment (need to be equipped with a light probe) are realized

* Equipped with an emergency start module. When the CNC panel fails, the emergency start module can be plugged in and powered on.


Specification:


Input

Rated power

150KW

Input voltage

3-phase 5-wire AC380V±10%, the power frequency is 50Hz±5%

Output

Output channels

45 channels

Single channel power

≤3.5KW

Output voltage

Single-phase three-wire system AC220V±10%

Other introduction

Installation method

Floor-standing

Output selection switch

D32A*1P

AC contactor

(Rated current 65A*5

Rated current

253Amain molded case circuit breaker current: 250A

Ambient relative humidity

10%—80%

Operating temperature

‐10℃—+60℃

Enclosure rating

IP30

Cabinet size (H*W*T)

1500mm*700mm*350mm

Equipment weight

75Kg

Equipment material

Iron box (surface painted wrinkled white)

Built-in safety switch and 10A-16A three-hole maintenance socket
