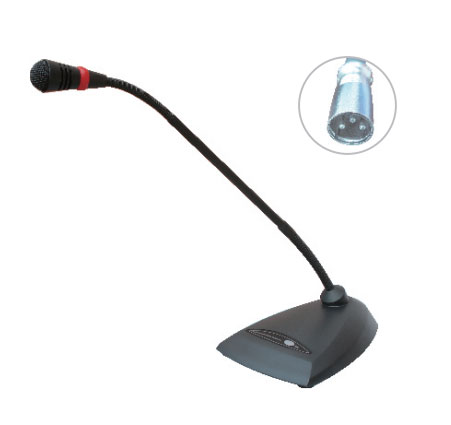

T-531 Phantom Power Condenser Mic

The Details Related Solution Related Cases Related Video Download

ITC Conference system power condenser microphone




null

null




Features


* Powered by phantom power from amplifier.

* With red ring indicator for service.

* XLR convenient connector.

* High sensitivity flexible gooseneck.

* Unidirectional condenser microphone.

* Built-in low frequency attenuator.




Specification


Model
T-531
Type
Unidirectional
Frequency Response
50Hz~18KHz
Max Sound Pressure
120dB(at 1KHz ≤1%T.H.D)
Input Sensitivity
200Ω ±30%
Sensitivity
-47dB ±3dB(0dB=1V/Pa at 1KHz)
S/N Ratio
68dB
Power Supply
Phantom power 48V
Mic length
375mm
Output Connector
Balanced XLR connector
Cable Length
3 Meters
Weight
0.88Kg
