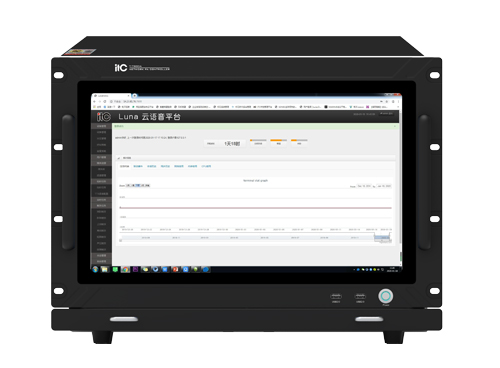

T-7800A IP Intercom & PA System Server

The Details Related Solution Related Cases Related Video Download



Description:


The IP network controller is the operating carrier of the IP PA system server software. Working with the Luna cloud-based PA system software, it acts as the control center of the PA system. Installed in the main control room, it conducts real-time and effective management of the entire PA system.


Feature:


* The industrial-grade IPC cabinet adopts a steel structure, which is highly anti-magnetic, dust-proof and shock-proof.

* 17.3-inch LED LCD display, built-in 10-point capacitive touch screen, user-friendly operation.

* Industrial control telescopic keyboard design, more convenient operation, support 1 HDMI HD video output.

* Industrial-grade dedicated motherboard design, Intel B75 chip-set architecture, Intel Core i7-2600 @ 3.40GHz quad-core CPU, memory DDR3 standard 8G.

* Built-in large-capacity 256G mSATA hard disk, speed of reading and writing up to 600MB/S, no movable mechanical parts, super durability and reliability.

* It has 8 USB ports and 6 universal serial ports, convenient for the access of external peripheral equipment.

* Support 2 channels of sound cards, receive external audio signals and collect them to the server program channel, which will be uniformly played by the server to the front-end network audio terminals. Support dual graphics cards and can be connected to the largest FullHD display device.

* Support automatic start-up after turning on the power, scheduled power-on/off of the operating system; support the automatic power-on function triggered by external devices. It is convenient for the flexible operation and management of the project, and reduces unnecessary power loss.

* Linux system works as the core operating platform, providing strong openness, easy extension and upgrade, powerful network support, high security, and strong compatibility.

* Unified management of all audio terminals in the system, including paging microphones, intercom terminals, broadcasting terminals and fire alarm interface devices.

* It can manage a maximum of 300 terminal devices and support a maximum of 150 groups of differentiated real-time tasks.

* The system has a strong backup mechanism, which can realize seamless switching when the main server fails.

* Standard dual network interface, support switching of extension mode and redundant backup mode, full connection rate up to 1000M, support cross network band and cross router mode.

* Support primary and spare server mode, and the spare server as a hosting application, support NTP (time synchronization) server calibrating time with GPS.

* Support distributed deployment of multiple servers and server cluster architecture.


Specification:


Model

T-7800A

Screen size

17.3 inches

Screen color

24-bit full color

Display screen

17.3-inch high-resolution LED LCD screen (1920*1080)

Control method

10-point capacitive touch screen

Screen ratio

16:9

Working temperature

-10℃~50℃

Storage temperature

-20℃~60℃

Relative humidity

10%95%, no condensation

Standard interface

1×PS/2 port; 6×serial port; 1×VGA; 1×HDMI, 8×USB port;

2×Gigabit Ethernet port; 1×Audio

Hard disk

Support 3.5", 2.5", mSATA hard disk;

standard configuration: mSATA 256GB

RAM

DDR3 1333/1600 MHz, support up to 16GB; standard configuration: 8G/DDR3 /1600 MHz

Network card

Intel dual gigabit network interface network card

CPU

Intel Core i7-2600 @ 3.40GHz quad core

Chip-set

Intel B75

System audio signal SNR

LINE: 70dB; MIC: 60dB

System audio signal distortion

1KHz<0.5%

System audio signal standard input level

LINE: 300mV; MIC: 5mV

System audio signal standard output level

0dBV

Power supply

Input voltage: AC100V-240V

Software operating platform

ubuntu

Size(mm)

484×358.5×306.5(W×H×D) (without handle)

Weight

18.4kg
